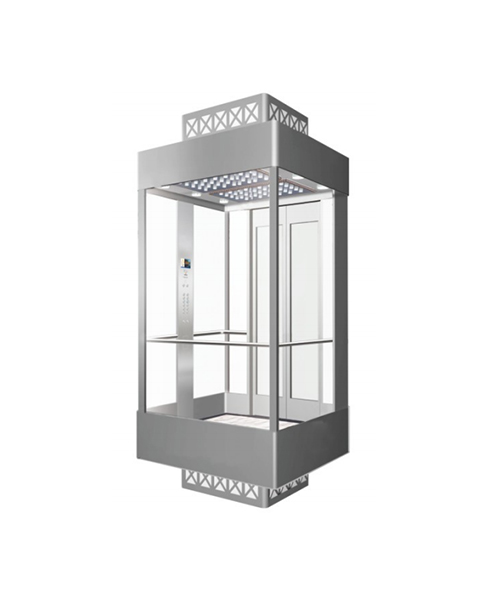

Observation Elevator FH-G12

Observation Elevator FH-G12

FUJI Observation elevator series applies the most advanced elevator tech, modem new materials, the latest machining tech. Therefore it always has perfect play in the aspects of running quality, safety functions, car model design, energy-saving, loss-reducing etc. Observation elevator series has specially designed car outine, distinguished and extraordinary decoration, it brings out the best from the building. Panorama glass with extra-wide angle of vision, extremely high perspective grants you to fully enjoy infinite demeanor of modem city. Meanwhile, you experience a pleasant joumey.
The outstanding design of FUJI products can be shown in specially-thickened firm car wail, fine and magical intemal car decoration, wear-resistant operation press-Keys, highly clear display system etc

Upper /lower cover:  Steel plate baked enamel  creamy white acrylic decoration

Observation wall:       5PCS of comer arc laminated safety glass(6+6)
Decoration ceiling:      Decoration top:Steel plate baked enamel frame acrylic top panel LED

Car wall:                       Hairline stainless steel

Handrail:                      Stainless steel flat handrail

Floor:                            PVC/marble parquet floo



Super enjoyment of mobile scene
Fine and exquisite observation elevator enhanoes building grade. It highlights the whole building.
FUJI observation elevator is a mobile soene. It has fine and exquisite visual aesthetics, perfect and comfortable travel. It applies modem new material and new fully computerized, vector type varable frequency speed regulation (VVVF) control technology. It combines with data network system, modular structure, the latest machining craft & technology.

Travel function
VVVF drive Motor rotating speed can be precisely adjusted to get smooth speed curve in lift start, travel and stop and gain the sound comfort.
VVVF door operator Motor rotating speed can be precisely adjusted to get the more gentle and sensitive door machine start/stop.
Independent running The lift can not respond to outer calling, but only respond to the command inside the car through the action switch.
Automatic pass without stop When the car is crowded with the passengers or the load is close to preset value, the car will automatically pass the calling landing in order to keep maximum travel efficiency.
Automatically adjust door opening time Door-open time can be automatically adjusted according to the difference between landing calling or car calling.
Reopen with hall call In the door shutting process, press reopen with hall call button can restart the door.
Express door closing When the lift stops and opens the door, press door-shut button, the door will be closed immediately.
Car stops and door open The lift decelerated and levels, the door only opens after the lift comes to a complete stop.
Car arrival gong Arrival going in the car top announces that the passengers arrive.
Command register cancel If you press the wrong floor command button in the car, twice continuous pressing of the same button can cancel the registered command.
Anti-nuisance In the light lift load, when three more commands appear, in order to avoid the unnecessary parking, all the registered callings in the car will be cancelled.
Open the door in advance When the lift decelerates and enters into door open zone, it automatically opens the door to enhance the travel efficiency.
Direct parking It completely, accords with distance principle with no crawling in the leveling. It greatly enhances the travel efficiency.
Group control function When three or more same model lift groups are controlled in use, the lift group can automatically choose the most appropriate response. It avoids, the repeated lift parking, reduces the passengers' waiting time and increases the travel efficiency.
Duplex control Two sets of same model lifts can unanimously respond the calling signal through the computer dispatch. In this way, it reduces the passengers waiting time to the greatest extent and enhances the travel efficiency as well.
On-duty peak service Within the preset on-duty time, upward transport, from the home landing is extremely busy. The lifts are continuously dispatched to the home landing in order to satisfy on-duty peak service.
Off-duty peak service Within the preset off-duty period, the lifts are continuously dispatched to top floor in order to satisfy off-duty peak service.
Door open time extending Press special button in the car, the lift door keeps open for certain period of time.
Man-machine interface
Micro-touch button for car call and hall call Novel micro-touch button is used for operation panel command button in the car and landingcalling button.
Floor and direction indicatorinside car The car shows the lift floor location and current travel direction.
Floor and direction indicatorin hall The landing shows the lift floor location and current travel direction.
Voice announcer When the lift normally arrives, voice announcer informs the passengers about the relevantinformation.
Car assistant operation box lt is used in the large loading weight lifts or the lifts with crowded passengers so that more andmore passengers can use the car.
Operation box for thehandicapped lt is convenient for the wheelchair passengers and those who have vision problems.
lntelligent calling service The car command or hoist-way calling can be locked or connected through special Intelligent Input.
IC card control function All (partial) landings can only input car commands through IC Card after the authorization.
Monitor function
Remote monitor The lift long-distance monitor and control can be fulflled through modem and telephone. lt isconvenient tor the factories and service units to timely know the travel conditions of every lift andpromptly take the corresponding measures.
Remote control The lift can have independent travel according to the specific requirements through operationmonitor screen (optional).
Camera function in the car The camera is installed in the car to monitor the car conditions.
Safety function
Light curtains protection In the door open and shut period, infrared light that covers the whole door height is used to probethe door protection device of both the passengers and objects.
Designated stop lf the lift can not open the door in the destination floor out of some reason, the lift will close thedoor and travel to the next designated floor.
Overload holding stop When the car is overload, the buzzer rings and stops the lift in the same floor.
Anti-stall timer protection The lift stops operation due to slippery traction wire rope.
Start protection control lf the lift does not leave door zone within the designated time after it gets started, it will stop theoperation.
lnspection operation When the lift enters into inspection operation, the car travels at inching running.
Fault self-diagnosis The controller can record 62 latest troubles so as to quickly remove the trouble and restore thelift operation.
Repeated door dosing lf the lift can not dose the door due to certain obstacle or interference, the lift will reopen orre-shut the door until sundries are eliminated.
Up/down over-run and final limit protection The device can effectively prevent from the lift' s surging to the top or knocking the bottom whenit is out of control. It results in more safe and reliable lift travel.
Down over-speedprotection device When the lift downs 1.2 times higher than the rated speed, this device will automatically cut offcontrol mains, stop the motor running so as to stop lift down at over-speed. If the lift continues todown at over-speed, and the speed is L4 times higher than rated speed, safety tongs act to forcethe lift stop in order to ensure the safety.
Upward over-speedprotection device When the lift up speed is 1.2 times higher than rated speed, the device will automaticallydecelerate or brake the lift
Elevator cab prevents accidentalmovement When the elevator is in the open state, if there is accidental movement, the elevator cab canpresent the movement
Emergency function
Emergency car lighting Emergency car lighting automatically activated once power failure.
lnching running When the lift enters into emergency electric operation, the car travels at low speed inching running.
Five way intercom Communication amid car, car top, lift machine room, well pit and rescue duty room throughwalkie-talkie.
Bell In emergency conditions, if bell button above car operation panel is continuously pressed, electricbell rings on top of the car.
Fire emergency return lf you start key switch in main landing or monitor screen, all the callings will be cancelled.The liftdirectly and immediately drives to the designated rescue landing and automatically opens the door.
Leveling when power failure In normal power failure, the chargeable battery supplies the lift power. The lift drives to the nearestlanding.
Energy-saving function
Car ventilation, light automatic shut off lf there is no calling pr command signal within the stipulated time, the car fan and lighting will beautomatically closed in order to save the energy.
Remote shut-off The lift pan be called to main landing (after finishing the service) through the key switch andautomatically exists the service.
