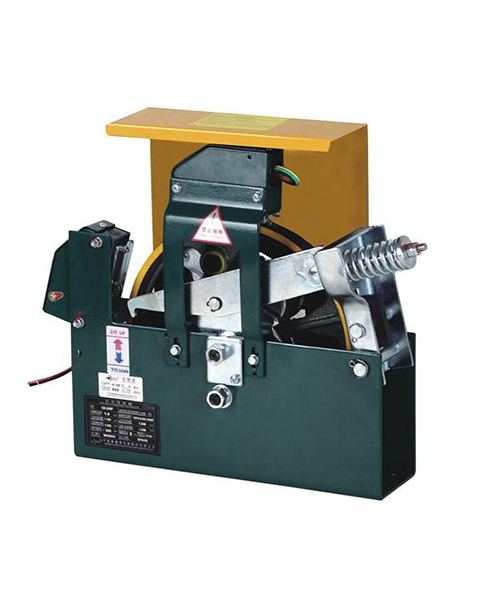

Elevator Accessories Two-way speed limiter OX-240F

Elevator Accessories Two-way speed limiter OX-240F

0
Views: 88
MORE INFORMATION

Details

Coverage specifications (rated speed): ≤0.63m/s, 1.0m/s, 1.5~1.6m/s, 1.75m/s, 2.0m/s, 2.5m/s
Rope wheel pitch diameter: Φ240mm
Nominal diameter of speed-limiting wire rope: standard Φ8mm, optional Φ6mm
Brake pull: 800N~1500N
Tightening weight: standard OX-300 (≥18kg), optional OX-200 (≥12kg)
Working position: car side or counterweight side
Uplink control: permanent magnet synchronous traction machine brake, counterweight safety clamp, rope clamp (electromagnetic trigger type)
Downstream control: safety gear
Implementation standards: GB7588-2003, EN81-1: 1998
