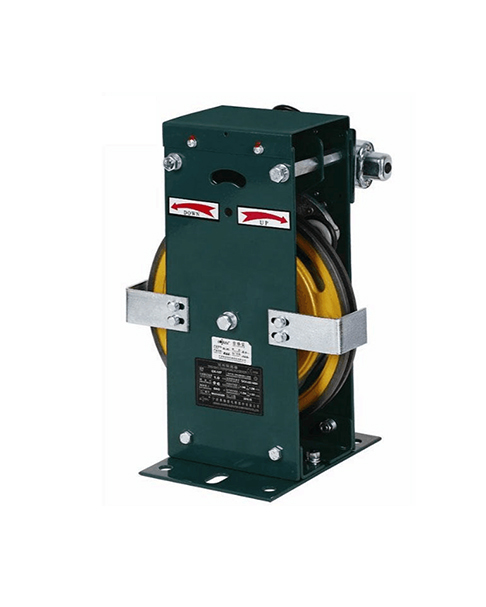

Elevator Accessories Two-way speed limiter OX-187

Elevator Accessories Two-way speed limiter OX-187

0
Views: 80
MORE INFORMATION

Details

Coverage specifications (rated speed): ≤0.63m/s, 1.0m/s, 1.5~1.6m/s, 1.75m/s, 2.0m/s
Rotor wheel pitch diameter: Φ200mm (≤1.0m/s), Φ240mm (≤1.75m/s), 300mm (2.0m/s)
Nominal diameter of speed-limiting wire rope: standard Φ6mm, optional Φ8mm (depending on the state of the sheave)
Brake tension: ≥500N
Tightening weight: standard OX-200 (≥12kg), optional OX-300 (≥18kg)
Magnet voltage: standard AC220V, optional DC24V
Working position: car side or counterweight side
Uplink control: permanent magnet synchronous traction machine brake, counterweight safety gear, two-way safety gear
Downstream control: safety gear
Remote operation: electrical control test action and its electrical switch reset, mechanical mechanism can be automatically reset.
Implementation standards: GB7588-2003, EN81-1: 1998
